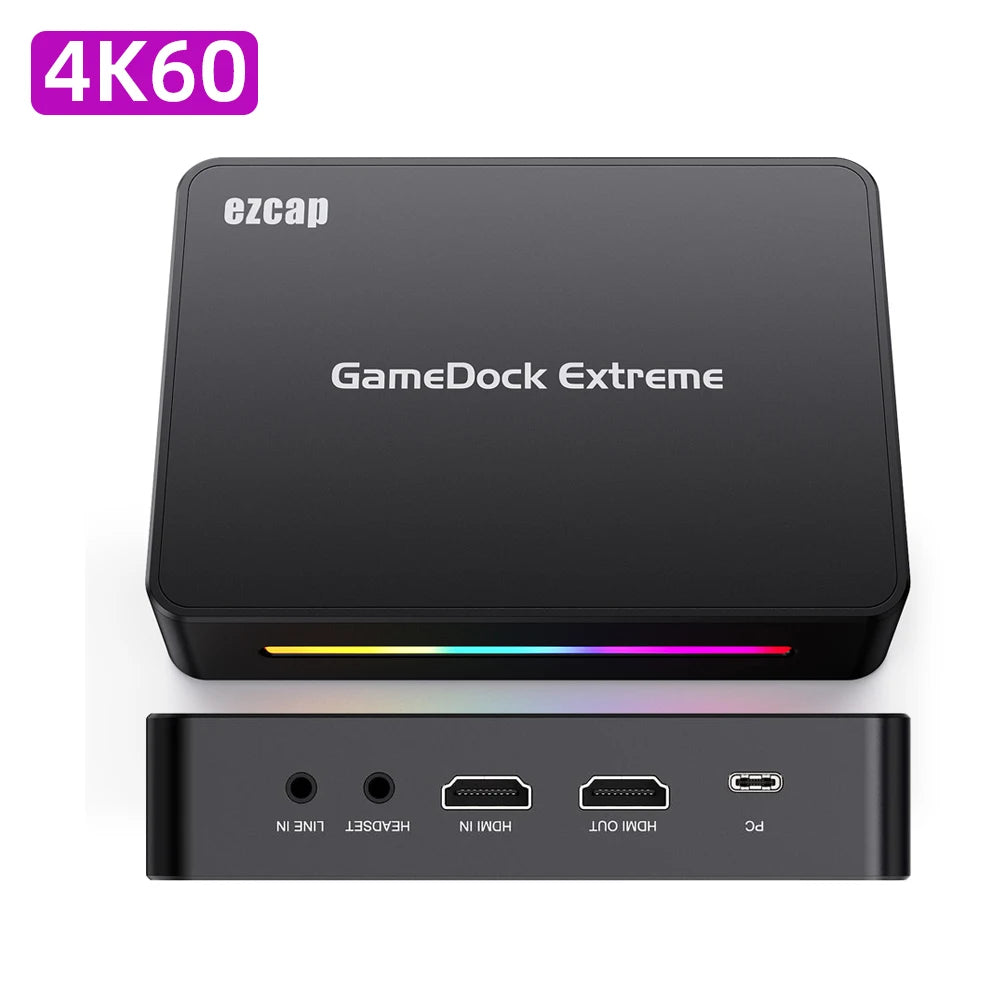

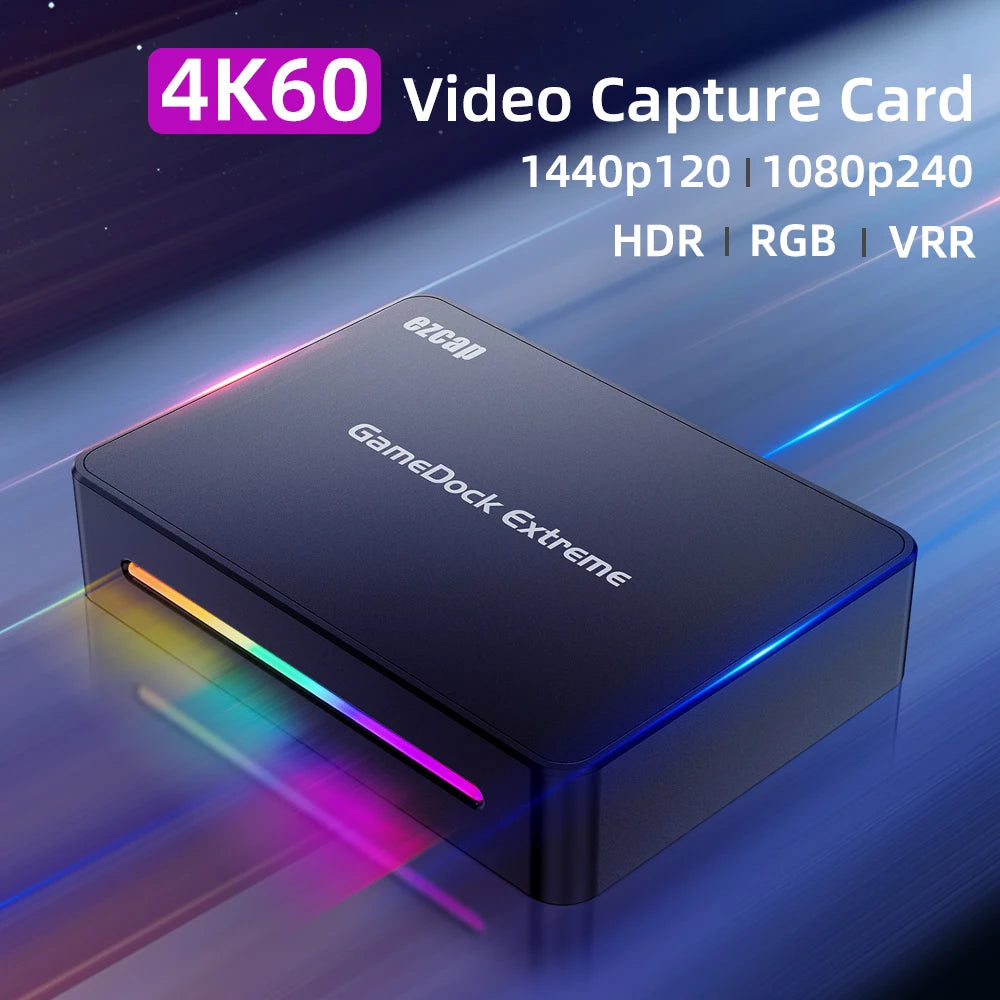

4K 60fps USB Video Capture Card

Capture every gaming moment in stunning clarity with this 4K 60fps USB Video Capture Card, designed for streamers, content creators, and gamers who demand high-quality performance. This advanced capture device supports 4Kp60 HDR, 1080p240, and 1440p120 HDMI input and loop output, delivering ultra-smooth and vibrant visuals for live streaming, screen recording, or broadcasting.

With HDR and VRR passthrough, plus support for RGB primary color output, you'll enjoy accurate colors and minimal latency — under 50ms. The USB 3.2 Gen 1 Type-C interface ensures ultra-fast transmission, while UVC plug-and-play compatibility means no drivers are needed. Compatible with a wide range of platforms including TV, PC, mobile, DSLR, PS4/PS5, Xbox, Switch, and more.

Whether you're streaming to YouTube, Twitch, or capturing professional content, this device delivers smooth, reliable performance with maximum detail and color depth.

📦 Specifications:

• Type: Video Capture Card

• Interface: USB 3.2 Gen 1 Type-C

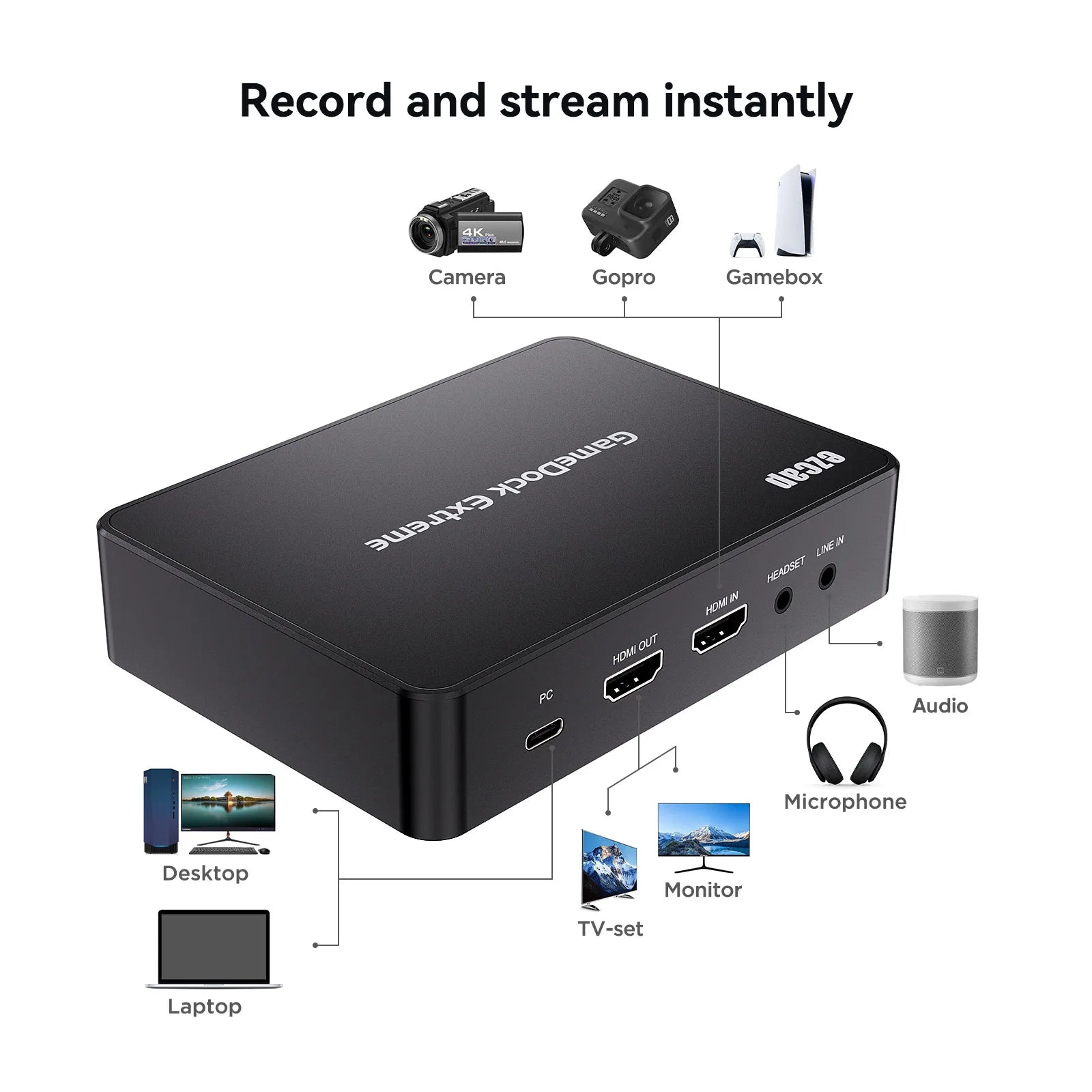

• Video Input: HDMI 2.0

• Video Output (Loop Through): HDMI 2.0

• Audio Input:

  • HDMI 2.0 (Supports LPCM 5.1/7.1)

  • 3.5mm Line-in (3-pole TRS)

  • 3.5mm Headphone-in (4-pole CTIA)

• Audio Output (Pass-through):

  • HDMI 2.0

  • 3.5mm Headphone-out (4-pole CTIA)

• Max HDR Pass-through Resolution:

  • 2160p60, 1440p120, 1080p240

• Max VRR Pass-through Resolution:

  • 3840x2160 @ 48–60Hz

  • 1920x1080 @ 48–120Hz

  • (Note: YCbCr 420 VRR input not supported)

• Max Recording Resolutions:

  • 3840×2160 @ 60fps (MJPG), 30fps (NV12/I420)

  • 2560×1440 @ 144fps (MJPG), 60fps (NV12/I420), 50fps (YUY2)

  • 1920×1080 @ 240fps (MJPG), 120fps (NV12/I420), 60fps (YUY2/RGB24)

  • 1280×720 @ 60fps (various formats)

• Latency: Less than 50ms

• Color Output: RGB up to 1080p60

• Driver Support: UVC standard (no driver required)

• Software Compatibility: Works with most third-party video capture software

• Status Indicators:

  • Red: Power on

  • Blue: HDMI signal connected

  • Color slow flash: Device running

• System Requirements:

  • Windows: 10/11 x64, i5-6XXX+ / GTX 1060+, 8 GB RAM

  • Mac: macOS 11/12, Apple M1 or i7 quad-core, Radeon Pro 555 (2 GB), 16 GB RAM

• Applications: TV, DSLR, PC, mobile phones, PS4/5, Xbox, Nintendo Switch, displays

• Included in Box:

  • Video Capture Card

  • USB-C to USB-A Cable

  • User Manual
